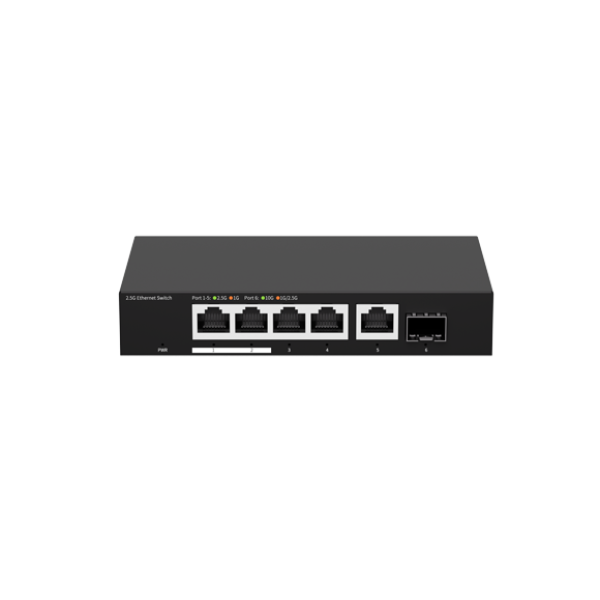

6-Port2.5G Ethernet Switch with 1-Port SFP+

Description

  Specification

Interface

5*10M/100M/1000M/2500M RJ45 Ports

1*10G SFP+ Ports

Port Standard

IEEE 802.3i:10BASE-T Ethernet;

IEEE 802.3u:100BASE-T Fast Ethernet;

IEEE 802.3ab:1000BASE-T Gigabit Ethernet;

IEEE802.3bz 2.5GBASE-T Ethernet;

IEEE 802.3ae 10 Gigabit Ethernet

Bandwidth

45Gbps

Packet Forwarding Rate

33.48Mpps

Packet Buffer

8Mbit

MAC Address Table

4K

Transmission Method

Store and Forward

Jumbo Frame

12K

Power Supply

DC12V1A

Dimensions (W x D x H)

138*78*26mm

Package Contents

Switch *1，Power adapter *1，Installation guide *1

Fan Quantity

Fanless

Installation

Desktop/Wall-Mounting

Surge  Protection

Port protection: common mode 4KV, differential mode 2KV ;

ESD Protection

Air: 8 kV, Contact: 6 kV

Operating Temperature

0~40°C

Storage Temperature

-40 °C to 70 °C

Operation Humidity

10%~90%,non condensing

Storage Humidity

5%~95%,non condensing

Certification

CE,FCC,RoHS
